Customized Automatic Conveyor Hot Press Production Line with 50T Maximum Pressure and 3500mm*1800mm Workbench for Art Doors

Product Categories
Foshan Henglihao Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Customized Automatic Conveyor Hot Press Production Line with 50T Maximum Pressure and 3500mm*1800mm Workbench for Art Doors

  • 1
  • 2
  • 3

Maximum composite panel size : 3300*1600mm

Spacing : 250mm

Maximum temperature : 100℃

Place of Origin : China

Workbench dimensions : 3500mm*1800mm

Stress method : Press down from top to bottom

Certification : CE、ISO 9001

Hydraulic system power : 4KW

Working pressure of hydraulic   system : 50T

Payment Terms : T/T

Delivery Time : 15-20Work days

Feeding roller conveyor frame : 3500*1800*850mm*1pcs

Hot press plate size : 3500mm*1800mm*2pcs

Price : Online/offline communication

Maximum pressure : 50T

Workbench reducer : 2.2kw*1pcs

Stress method Press down from top to bottom Maximum pressure 50T Workbench dimensions 3500mm*1800mm : 1.5kw*2pcs

Brush roller motor : 1.1kw*1pcs

Discharge roller conveyor frame : 3500*1800*850mm*1pcs

Brand Name : Henrriet

Oil cylinder and quantity : 6pcs*70mm*250mm

Number of layers : 1-layer

MOQ : 1

Packaging Details : Film with Foam

Fabric rolling motor : 1.5kw*2pcs

Heating system : Electric heating heat transfer medium: heat transfer oil (mixed with heat transfer oil)

Contact Now

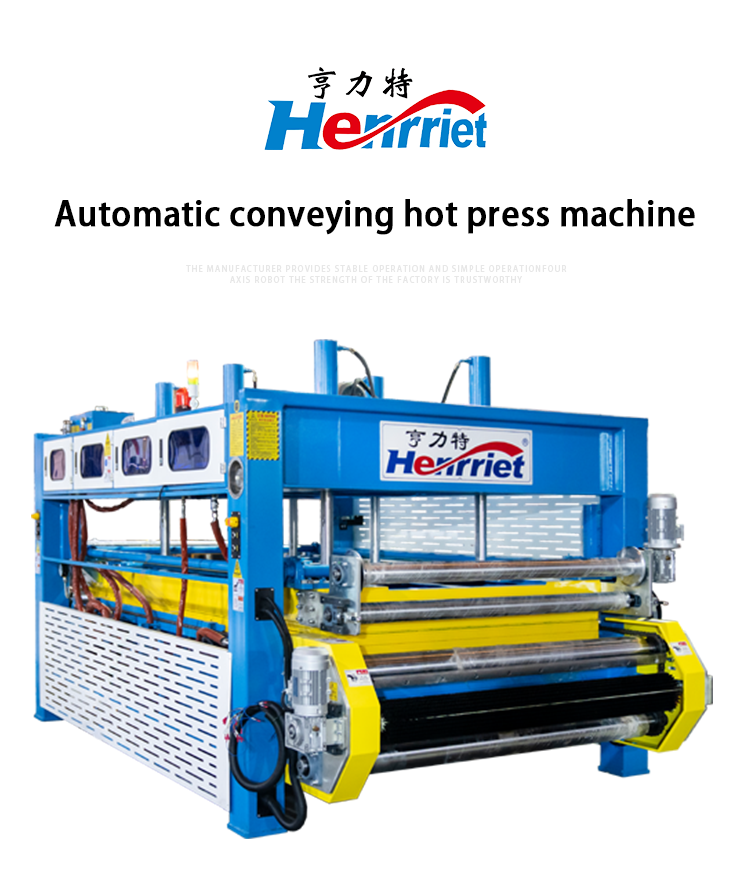

Customized Automatic Conveyor Hot Pressing Production Line
For Art Doors, Electronic Doors, and Partition Doors
Product Overview

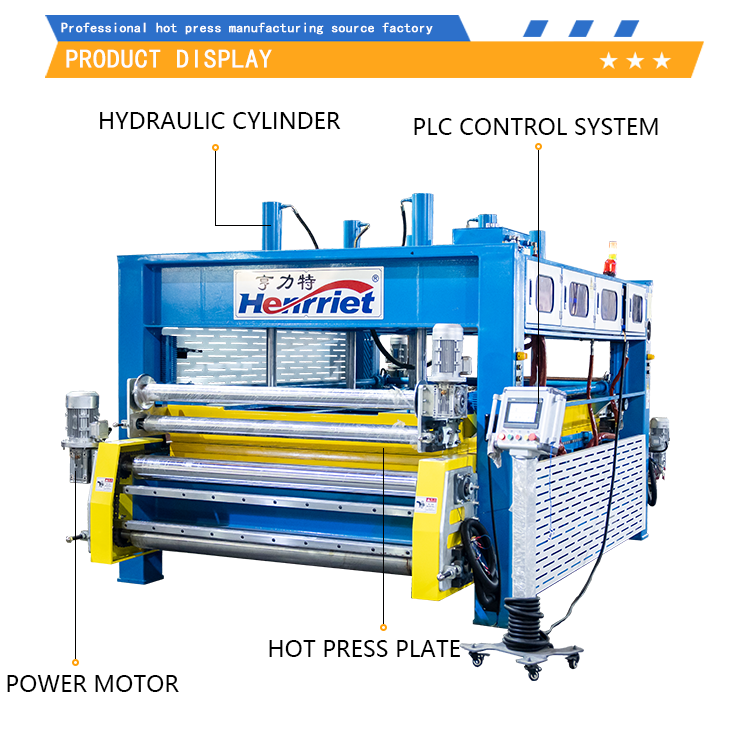

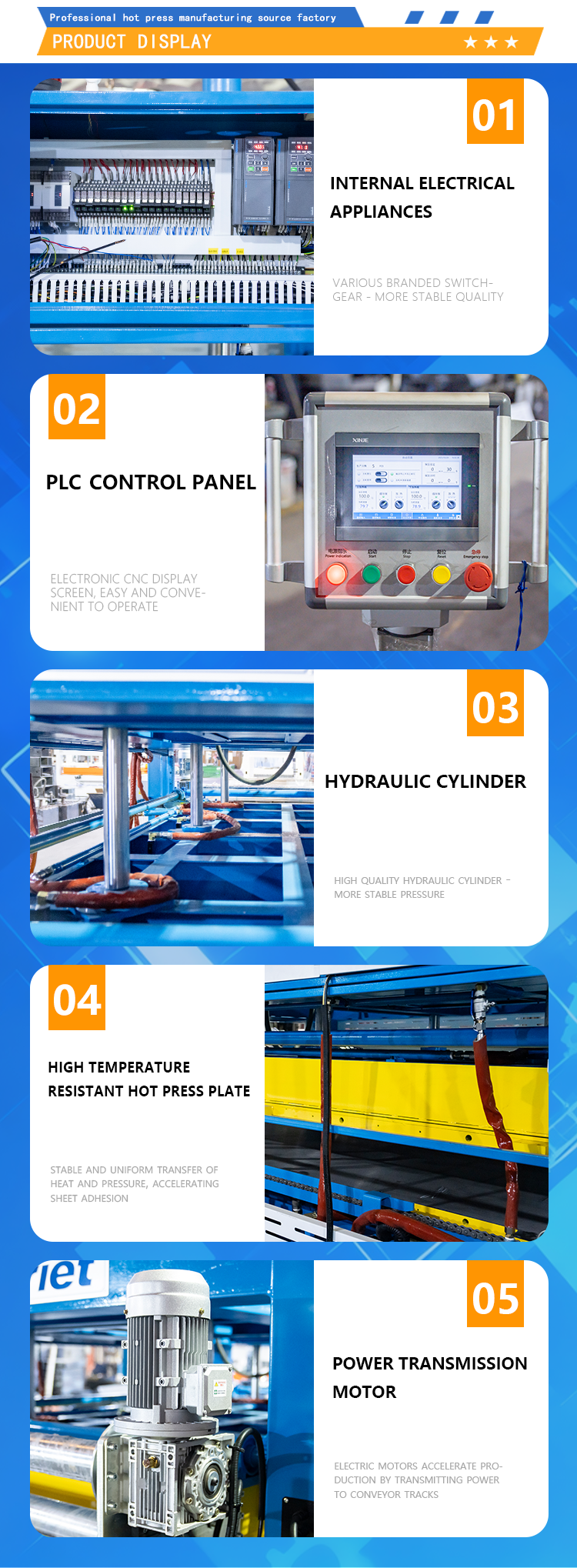

The Automated Conveyor Hot Press System operates as an integrated production platform, harmonizing pressing equipment with material handling systems through a unified architectural framework. This includes a precision-engineered hot press structure, dynamic infeed/outfeed conveyor mechanisms, hydraulic elevation modules, and a centralized electrical control network. The system follows a sequential "single-entry, single-exit" workflow, utilizing hydraulically adjustable roller conveyors at entry and exit stations to seamlessly guide pre-assembled panel stacks into the pressing chamber while concurrently extracting finished boards for downstream processing.
Key Features
  • Superior Production Capacity: This system redefines manufacturing competitiveness through automated continuous operation and precise material adaptability, delivering breakthroughs in cost reduction and productivity. By eliminating inter-stage waiting periods and minimizing material handling time, it achieves significantly higher output from equivalent equipment.
  • Integrated Safety and Protection: Engineered for high-temperature, high-pressure, and automated material movement risks, the system incorporates layered safety mechanisms including hydraulic monitoring, conveyor overload shutdown, anti-deviation monitoring, heating system protections, and anti-scald insulation.
  • Wide-Ranging Application Versatility: Supports specialized door manufacturing across diverse categories including stainless steel doors, electronic doors, artistic doors, elevator doors, and partition doors for various industrial and commercial applications.
  • Easy Maintenance and Technical Support: Sustained equipment performance through systematic maintenance protocols, regular cleaning, mechanical lubrication, hydraulic health monitoring, and sensor calibration for reliable operation in demanding production environments.
Technical Specifications
Stress Method Press down from top to bottom
Maximum Pressure 50T
Workbench Dimensions 3500mm × 1800mm
Hot Press Plate Size 3500mm × 1800mm × 2pcs
Maximum Composite Panel Size 3300 × 1600mm
Number of Layers 1-layer
Spacing 250mm
Heating Circulating Pump Motor 1.5kw × 2pcs
Hydraulic System Power 4KW
Workbench Reducer 2.2kw × 1pcs
Fabric Rolling Motor 1.5kw × 2pcs
Brush Roller Motor 1.1kw × 1pcs
Oil Cylinder and Quantity 6pcs × 70mm × 250mm
Working Pressure of Hydraulic System 50T
Heating System Electric heating heat transfer medium: heat transfer oil
Maximum Temperature 100℃
Feeding Roller Conveyor Frame 3500 × 1800 × 850mm × 1pcs
Discharge Roller Conveyor Frame 3500 × 1800 × 850mm × 1pcs
Company Advantages
  • Two In-House Factories: Better prices and faster delivery with no middlemen or markups
  • 30+ Senior Engineers: Custom-built solutions designed around your production needs, floor space, and budget
  • CE & ISO 9001 Certified: Global-ready equipment meeting international electrical, mechanical, and safety regulations
  • 50+ Countries, 1000+ Projects: Proven experience in design and manufacturing for long-term, heavy-duty use
Service Support
  • Warranty: 1 year
  • Packaging: Film with foam
  • 24-hour customer service hotline, respond to repair needs within 48 hours
  • Free video training for operators and provision of process guidance manuals
  • Lifetime technical support and software upgrade services
