Industrial Multi-Deck Hot Press Machine with 100 Tons Maximum Pressure and 2 Layers for Aluminum Honeycomb Panel Pressing

Product Categories
Foshan Henglihao Machinery Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Industrial Multi-Deck Hot Press Machine with 100 Tons Maximum Pressure and 2 Layers for Aluminum Honeycomb Panel Pressing

Feeding conveyor belt medium : High-temperature resistant Teflon

Maximum pressure : 100 tons

Lower brush power : 1.5KW x 2

Certification : CE、ISO 9001

Actual pressure plate size : 11500mm x 1200mm

Heating cycle motor : 3KW x 4 units

Power of upper plate roll fabric : 1.5KW x 4

Price : Online/offline communication

Opening spacing : 0-250mm

Heating system power : 72KW x 4 blocks = 288KW

Feed reducer power : 4KW x 2

Delivery Time : 20-35Work days

Number of layers : 2 layers

Maximum temperature : 100 degrees

Payment Terms : T/T

Hydraulic station, hydraulic valve group : 2 sets (with added oil collection tray)

Oil cylinder and quantity : 24 pieces 70mm x 250mm

Packaging Details : Film with Foam

Hot press plate size : 11900mm x 1400mm

Place of Origin : China

plate thickness : 60mm x 4 pieces

MOQ : 1

Pressure mode : Top-to-bottom press type

Total power : 332KW

Brand Name : Henrriet

Hydraulic system motor power : 7.5KW x 2 units

Contact Now

Industrial Multi-Deck Hot Press Equipment for Aluminum Honeycomb Panel Pressing Process
Product Overview

Designed for honeycomb panels, sandwich composites, and various doors, this double-layer hot press conveyor line features an integrated heavy-frame construction. Its industrial cabinet-style body incorporates roller conveyor sections at both the material inlet and outlet, combining the feeding and hot-pressing stages into a single cohesive system.

Powered by a hydraulic pressing unit and a circulating heating mechanism, the equipment supports continuous material flow during panel lamination. This arrangement reduces the need for frequent manual handling and helps create a more streamlined pressing process.

Key Features
  • Production Capacity: The double-layer configuration provides parallel operating stations; the continuous conveyor system aids in smooth material feeding and helps shorten idle periods.
  • Safety Protection: Equipped with standard hydraulic valve groups, protective covers for drive components, and emergency-stop systems.
  • Application Areas: Suitable for pressing composite panels, manufacturing sandwich panels, bonding fire-resistant boards, magnesium-oxide boards, thermal-insulation panels, and decorative wall panels for building applications.
  • Maintenance and Servicing: Modular design allows convenient inspection, offers adequate working space, and enables straightforward replacement of wear-prone parts.
Technical Specifications
Specification Details
Pressure Mode Top-to-bottom press type
Maximum Pressure 100 tons
Hot Press Plate Size 11900mm x 1400mm
Plate Thickness 60mm x 4 pieces
Actual Pressure Plate Size 11500mm x 1200mm
Number of Layers 2 layers
Opening Spacing 0-250mm
Heating System Power 72KW x 4 blocks = 288KW
Maximum Temperature 100 degrees
Total Power 332KW
Company Advantages
Two In-House Factories: Better prices and faster delivery with no middlemen markups
Expert Engineering Team: 30+ senior engineers providing custom-built solutions
Global Certification: CE & ISO 9001 certified for international compliance
Proven Experience: 50+ countries, 1000+ projects with heavy-duty engineering
Service Support
Warranty: 1 year
Packaging: Film with foam
Customer Service: 24-hour hotline with 48-hour response for repair needs
Training: Free video training for operators with process guidance manuals
Technical Support: Lifetime technical support and software upgrade services
Product Introduction
Industrial Multi-Deck Hot Press Machine with 100 Tons Maximum Pressure and 2 Layers for Aluminum Honeycomb Panel Pressing
Frequently Asked Questions
Who are we?
Based in Guangdong, China since 2016, we serve global markets with over 110 employees and extensive international experience.
Why choose us over other suppliers?
20+ years in wooden machinery industry, two factories covering 20,000+ square meters, 130+ professional employees including 30+ engineers for custom solutions, and comprehensive installation and training services.
How do we guarantee quality?
Through customer communication, engineering design, on-site guidance, full process testing, and pre-shipment inspection by engineers and project leaders.
What products do we offer?
Hydraulic cold presses, single-layer and multi-layer hot presses, glue spreading machines, automatic feeders, turnover machines, automatic palletizers, and custom automated production lines.
What services do we provide?
Multiple delivery terms (FOB, CFR, CIF, EXW, Express Delivery), various payment options (T/T, L/C, PayPal, Western Union, Cash), and multilingual support (English, Chinese, Spanish, Japanese, Russian, Hindi).

Product Tags:

Industrial Multi-Deck Hot Press Machine



Honeycomb Panel Hot Press Machine


Quality Industrial Multi-Deck Hot Press Machine with 100 Tons Maximum Pressure and 2 Layers for Aluminum Honeycomb Panel Pressing for sale

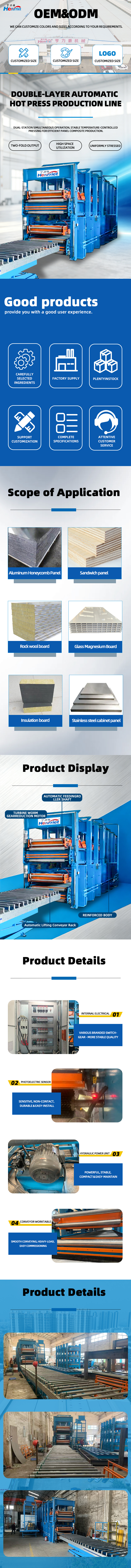

Industrial Multi-Deck Hot Press Machine with 100 Tons Maximum Pressure and 2 Layers for Aluminum Honeycomb Panel Pressing Images
