PLC Control Hot Laminating Press with Automated Conveying for Large-Format Aluminum Honeycomb & Carbon Fiber Composites at 100t Pressure

  • 1
  • 2
  • 3

Payment Terms : T/T

Total power : 164.6KW

Upstage fabric rolling motor : 1.5KW*2

Certification : CE、ISO 9001

Heating method : Electric heating heat transfer oil heat transfer

Price : Online/offline communication

Brush motor : 1.1KW

Maximum temperature : 100℃

Hydraulic system motor power : 7.5KW

Delivery Time : 25-35Work days

Heating cycle motor : 3KW*2pcs

Plate thickness : 60mm*2pcs

Belt conveyor power : 3KW

Actual composite maximum size : 9800*1200mm

Place of Origin : China

Maximum pressure : 100t

Packaging Details : Film with Foam

Oil cylinders and quantity (piston cylinders) : 12PCS（70mm*100mm*300mm）

Heating system power : 90KW*2=180KW

MOQ : 1

Number of layers : 1-layer

Brand Name : Henrriet

Pressure plate size : 10000*1300mm

Opening spacing : 0-300mm

Contact Now

Hot Laminating Press with PLC Control Production Line – Automated Conveying for Large‑Format Aluminum Honeycomb & Carbon Fiber Composites
Product Overview

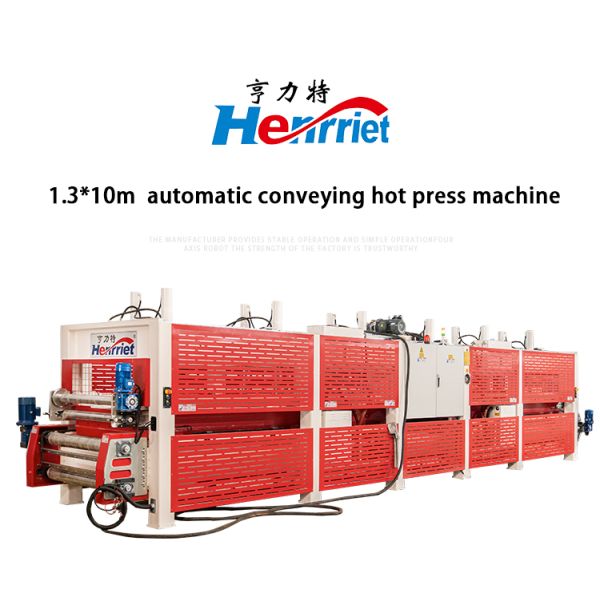

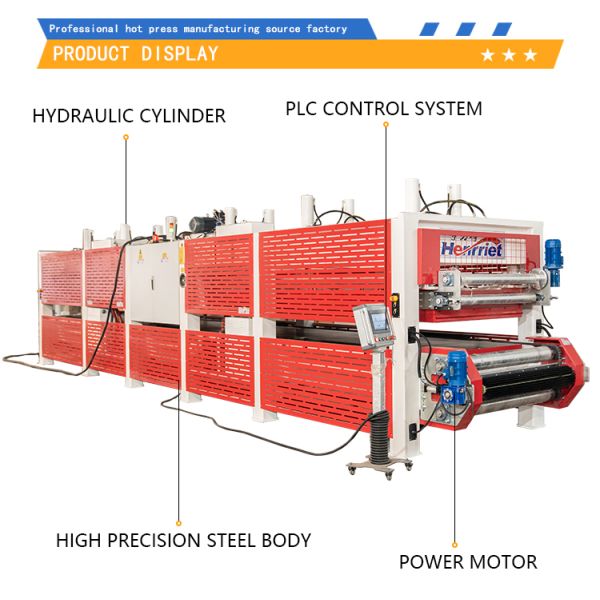

The 10-meter hot press automatic conveying production line is a large-scale composite manufacturing unit that integrates an ultra-long hot press with a fully synchronized material handling system. The core configuration includes a heavy-duty hot press mainframe, a 10-meter infeed conveyor, a discharge stacking device, precision temperature control heating loop, forced cooling and shaping section, and a PLC-based central control panel.

Key Features
  • Superior Production Capacity: Operates in completely uninterrupted mode with integrated conveyor mechanism for swift material handling, eliminating manual loading/unloading and minimizing non-productive time between cycles.
  • Integrated Safety and Protection: Fully enclosed guards and interlocked isolation barriers protect operators from high-temperature zones and moving mechanisms, with emergency stop buttons at all operator stations.
  • Wide-Ranging Application Versatility: Suitable for aluminum honeycomb panels (curtain walls, ceilings, rail transit, marine, aerospace), cleanroom/sanitary panels, and carbon fiber reinforced polymer (CFRP) molding.
  • Easy Maintenance and Technical Support: Routine upkeep procedures with no-load test runs to verify proper function of all transmission parts and safety devices.
Technical Specifications
Maximum pressure 100 Ton
Pressure plate size 10000*1300mm
Plate thickness 60mm*2pcs
Actual composite maximum size 9800*1200mm
Number of layers 1-layer
Opening spacing 0-300mm
Heating cycle motor 3KW*2pcs
Belt conveyor power 3KW
Brush motor 1.1KW
Upstage fabric rolling motor 1.5KW*2
Hydraulic system motor power 7.5KW
Oil cylinders and quantity (piston cylinders) 12PCS(70mm*100mm*300mm)
Heating system power 90KW*2=180KW
Heating method Electric heating heat transfer oil heat transfer
Maximum temperature 100℃
Total power 164.6KW
Company Advantages
  • Two In-House Factories: Better prices and faster delivery with no middlemen markups
  • 30+ Senior Engineers: Custom-built solutions designed around your production needs, floor space, and budget
  • CE & ISO 9001 Certified: Global-ready equipment meeting international electrical, mechanical, and safety regulations
  • 50+ Countries, 1000+ Projects: Proven experience in design and manufacturing for long-term, heavy-duty use
Service Support
  • Warranty: 1 year
  • Packaging: Film with foam
  • 24-hour customer service hotline with 48-hour response to repair needs
  • Free video training for operators and process guidance manuals
  • Lifetime technical support and software upgrade services

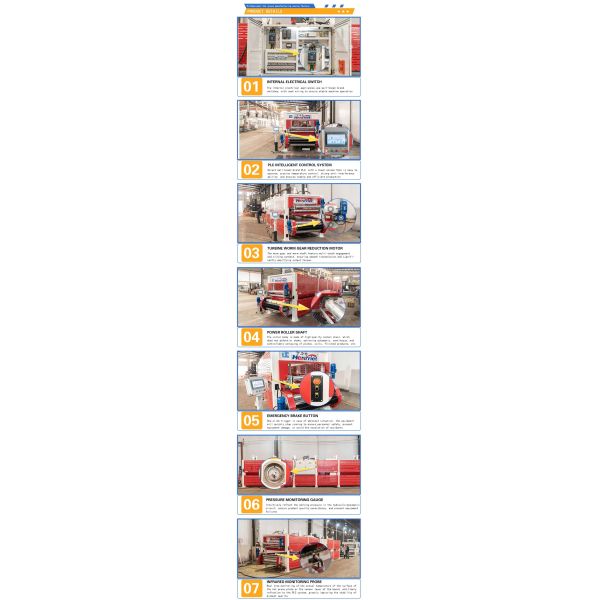

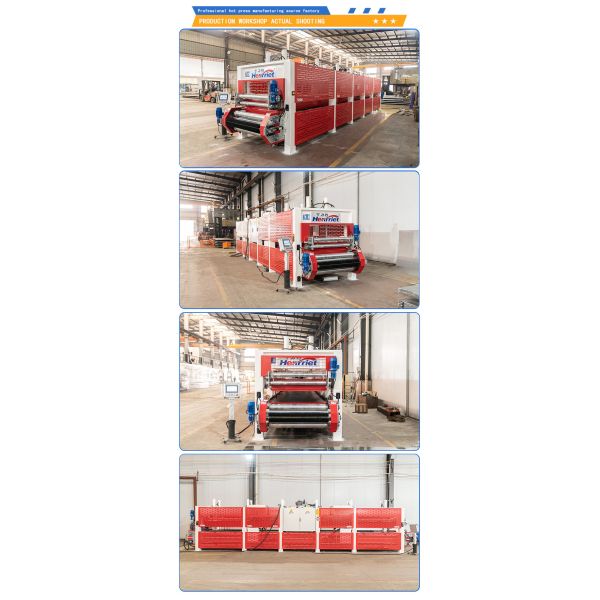

Product Gallery
